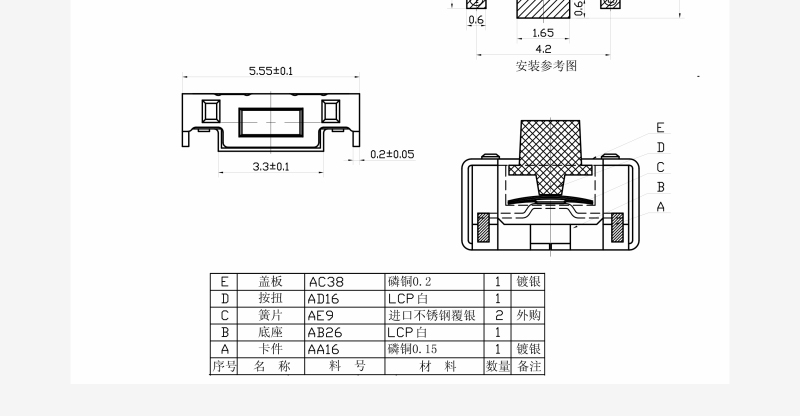

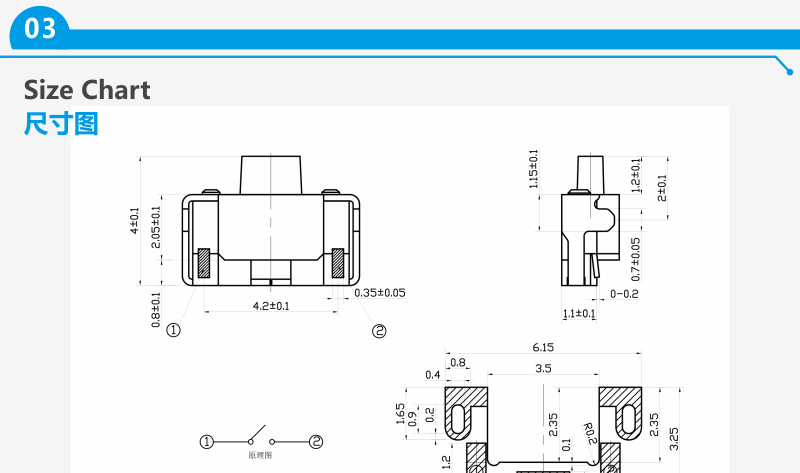

外形图 Diagram

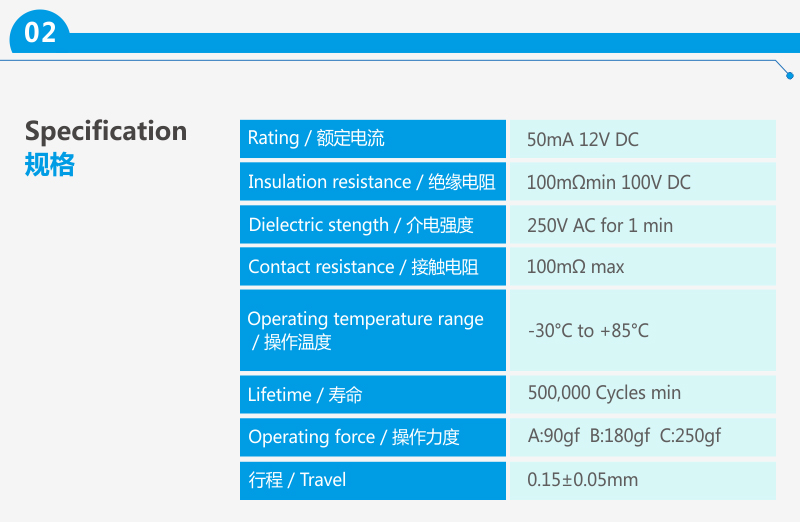

产品规格 Specification

项目Item	标准Judgment
额定电流 Ratings	50mA 12V DC
绝缘电阻 Insulation Resistance	100mΩmin 100v DC
介质耐压 Dielectric voltage proof	250V AC for 1min
接触电阻 Contact Resistance	100mΩ max
工作温度 Operating Temperature Range	-30°-+80°
动作寿命 Operating Life	30000
操作力 Operating Force	180g±50
最大行程 Full Travel	0.2±0.1mm
