2x4x3.75全白包脚小侧按开关
2x4x3.75全白包脚小侧按开关
  • 2x4x3.75包脚进口160gf

2x4x3.75全白包脚小侧按开关

编号:2435-6

分类:2x4侧按

型号:SD-1103(全白色)

规格:2*4*3.75带支架全白小侧按开关

订购热线
0755-27954861
立即订购

产品详情

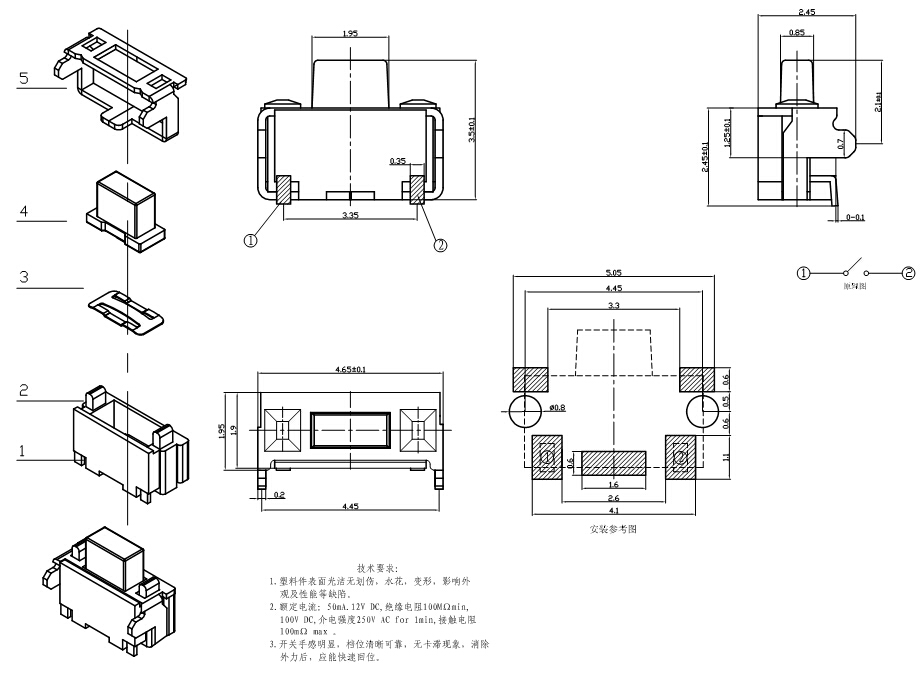

外形图 Diagram
2x4x3.75全白包脚小侧按开关
产品规格 Specification
项目Item 标准Judgment
额定电流 Ratings 12V DC, 50mA
绝缘电阻 Insulation Resistance ≥100MΩ.100V DC
介质耐压 Dielectric voltage proof 250V For 1min
接触电阻 Contact Resistance ≤100mΩ
工作温度 Operating Temperature Range -20℃~70℃
动作寿命 Operating Life 50000 Cycles
操作力 Operating Force 160gf
最大行程 Full Travel 0.2±0.1mm

特点 Features
  • 其紧凑的结构为整机产品的小形,轻量化作出了贡献。
  • Its compact size contrilbutes to make application units to be smaller and lighter.
  • 按钮顶面积大,具有良好的操作性与贴装性能。
  • Large stem top surface.Excellence in operationality and mountability.
  • 开关采用12mm宽度编带包装。
  • Packaged with a 12mm wide embossed taping.
用途 Applications
  • 汽车音响,汽车导航器,远距离无车钥匙开锁系统。
  • Car audio,car mavigation systems,Keyless entry systems.
  • 适用于电子化的各种音响设备,汽车,通讯设备,测量仪器等各种操作。
  • For operating various electronic devices such as audio devices,automotive units,communication devices,measuring instruments,etc.
